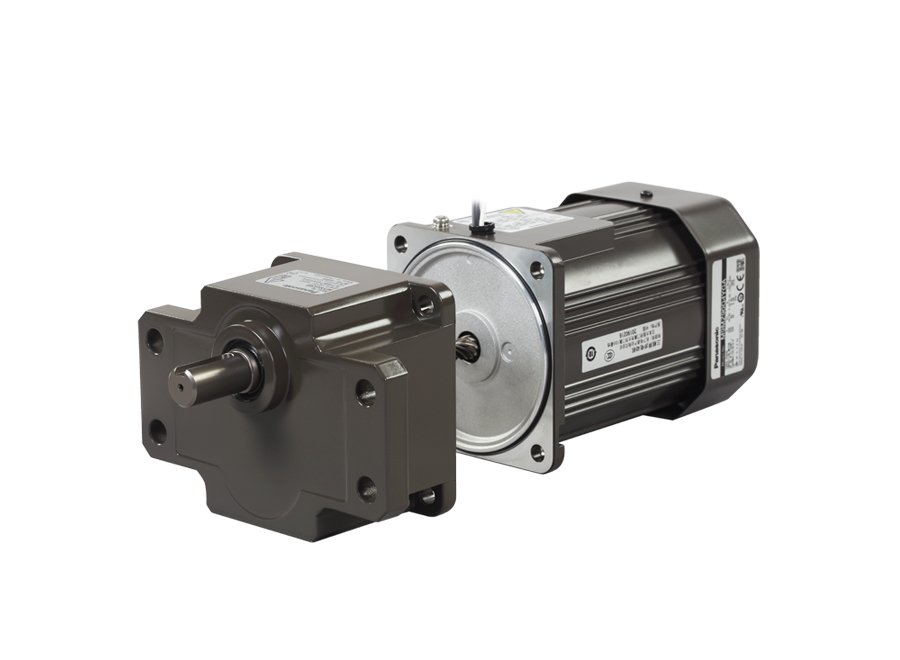

Panasonic 3-Phase motor is an induction motor for 3-phase power. Panasonic 3-Phase motor with specification compliant with overseas standards is of heatproof class 130 (B). Panasonic 3-Phase motor run with Variable frequency drive possible. In Panasonic 3-Phase motor, Variable speed, Braking, Soft start/stop, Normal/Reverse run are possible. Panasonic 3-Phase Motor with two types of motor shafts. the pinion shaft is used to connect a Gearhead (specialized speed-reducing devices) to the standard compact AC motor output shaft, and the round shaft is used when the motor is operated without a Gearhead. Panasonic Gearheads are available with different ratios from 3:1 to 200:1.
● Reduction ratio: 1/3 to 1/200
● Decimal Gear Head: 1/10
● Frame size: 80 sq. mm to 90 sq. mm
● Maximum Torque : 19.6 Nm
● Run with Variable frequency drive possible
● Variable speed, Braking, Soft start/stop, Normal/Reverse run possible
● High Power factor & Low noise level
● High torque with low speed
● Built-in Thermal overload protection
● Motor with Temperature of Insulation Class 130 (B)
● Motors with lead wires or terminal box (Sealed connector)
