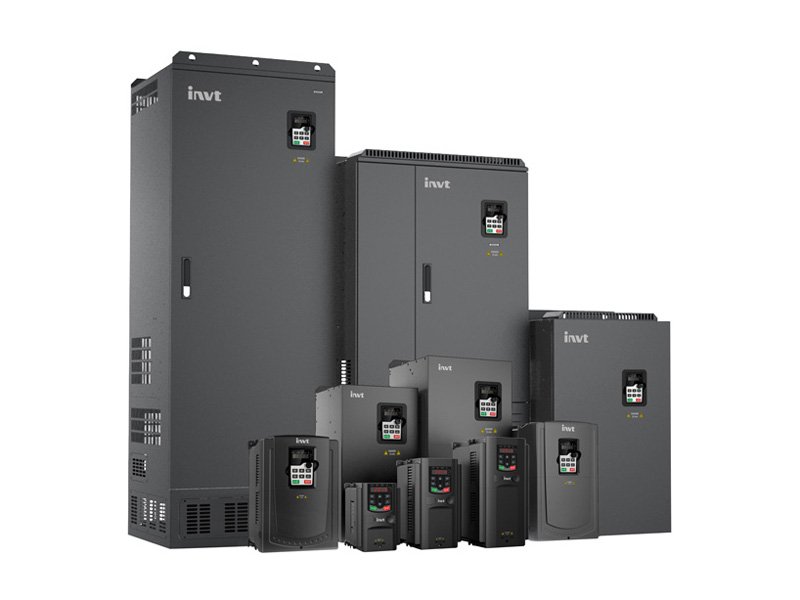

GD200A series G/P integrated inverter has excellent vector control performance, realizes the integration of torque control and speed control, and can meet various application requirements of different customers. In addition, the GD200A inverter has multiple functions such as simple water supply, non-stop in case of instantaneous power failure, etc. The whole series supports common DC bus, and the product has high reliability, which can better meet the various needs of customers.
Features
● With advanced open-loop vector control performance, good voltage and current control technology
Starting torque 0.5Hz/150% torque, speed ratio 1:100, dynamic response < 20ms, steady speed accuracy ±0.2%;
● Wide voltage range design to meet the harsh user grid environment
Wide voltage range up to AC 3PH:380V(-15%)~440V(+10%);
● Built-in standard C3 filter, optional external C2 filter, better EMC performance, making the product more suitable for electromagnetic interference occasions;
● 30KW (included) or less inverter built-in braking unit;
● The whole series is equipped with a high-performance keyboard that can copy parameters, which is convenient for customers to use and operate;
● The product supports common DC bus scheme and DC power supply mode;
● Various braking methods are provided to stop quickly Including dynamic braking, magnetic flux braking, DC braking, short-circuit braking, etc.;
● It has multiple functions such as simple water supply, non-stop in case of instantaneous power failure, etc., which can better meet various needs of customers;
● The product is a semi-book-shaped structure with an independent air duct design, and supports wall-mounted, flanged, and floor-mounted installations, providing customers with more reliable and economical installation and use methods.
